Video tutorial

How it works

1

Create an autofill PDF or document

Open the form you would like to link with a PDF or document and head over to the Integrate tab. Look for Generate PDF.
Integrate tab with Generate PDF highlighted under Popular apps
Drag and drop your PDF or document file.
You can generate multiple documents if needed.
2

Map fields to your document

If your PDF contains recognizable form fields, Fillout will automatically detect them and add those fields to the document in amber. If not, click + Add field and drag/resize fields as necessary wherever you would like to insert text on your PDF.
PDF editor with a job application document and the Add field button highlighted
Map fields with AITo map fields faster, click the sparkles icon at the top of the document to Generate field mappings with AI. Then, check each field and adjust any mapping that needs it.
PDF builder with the Generate field mappings with AI button
Then, choose the appropriate Connected fields in the right-hand panel. You can also change the Font settings used for respondent input.For Choice fields or questions, click + Add option to insert multiple fields corresponding to each possible form option.You don’t have to map every part of your document. Anything you don’t map stays as it is in your file, and empty areas stay blank.To add a respondent’s signature to the document, connect a field to your form’s Signature field and position it where the signature should appear.To show answers from a subform, connect the PDF field to one of the subform’s fields. Its answers from every entry print together, separated by commas. See Use subform answers in the main form.
PDF field connected to an availability question, with the Part-time option chosen for a checkbox
3

Preview and publish

Click Preview to generate a document using your mappings and the latest submission from your form. Once you’re happy with the result, click Publish in the upper right corner to finalize the document.

Set up your preferred workflow (Optional)

Now that your document mappings are configured, there are several ways to use your generated document.
Generate PDF options: view PDF on results page, send PDF in email, send PDF to a 3rd party integration and let users download a copy
By default, every time a new form submission is received, you can download the latest document in the Results tab. Look for the Generated documents column. Generated documents aren’t stored as files. They’re rebuilt from your template each time their link is opened, so deleting the submission breaks the link right away. Copies that were already emailed or downloaded can’t be recalled.

Send PDF in email

Email autofilled PDFs to respondents. Click this feature or open form settings. Then, enable Respondent notifications and Attach generated documents/PDFs.
Respondent notifications with Attach generated documents/PDFs turned on
To attach the PDF to a workflow email instead, open the email, expand Advanced and click Add attachment under Attachments. Then pick your document. To attach more files, click Add new. Learn more in Custom emails.

Send PDF to 3rd party integration

You can upload autofilled PDFs to 3rd party apps, like Airtable, Notion, SmartSuite, Dropbox, and more. Google Sheets can’t receive generated PDFs. Connect your form to your preferred app in the Integrate page. Under Mappings, link a file upload field (from your 3rd party app) to the appropriate Document you created.
Airtable mappings with the generated job application PDF chosen for an Attachments field
When you receive a submission, you will see an integration link in your form’s Results page that will take you to the uploaded file in your chosen app.

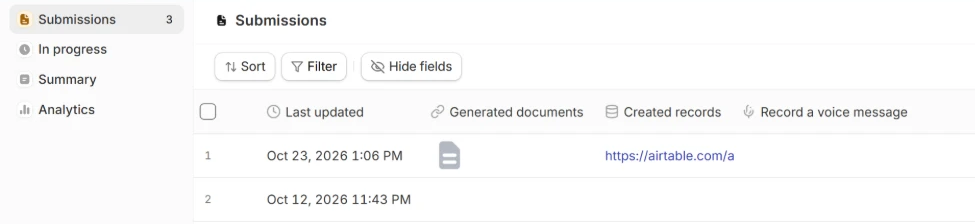

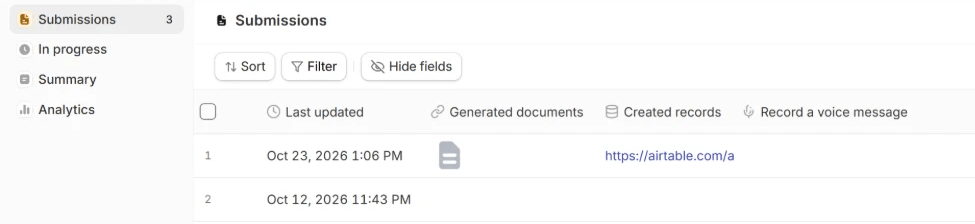

Results page with the Generated documents and Created records columns

Let users download a copy

Lastly, you can add a Download PDF button from the left-hand panel to any ending page to let your respondents download the generated document once they complete a form. Download links created while testing in Preview expire after 7 days.
Send response and Download PDF blocks in the ending page left-hand panel

Personalized PDF file names

You can automatically rename PDFs by referencing answers from your form, such as name, ID number, or any other collected data. Click the three dots followed by Rename document.
Document menu with Update PDF, Rename document, Duplicate document and Delete document
Then hover over the field and type @ or click the plus icon to choose the question or field you want to use. In our example, we’ll reference their “Name”.
Rename PDF file dialog with the full name answer referenced in the file name
Now, each generated PDF will be labelled with the respondent’s name. For example, “Clark Kent.pdf”.

Troubleshooting

Like an integration, a document is only generated when the form is submitted. Make sure you Publish your form after setting up the document or changing its mappings.Submissions received before that don’t have a document. To generate one, resubmit the response. Resubmitting runs everything connected to the form again, including other integrations, workflows, and notifications.
This error means the document isn’t in your form’s published version yet. Publish your form after you create the document or change it, then submit again.
Open Results and find the Generated documents column. A document icon means a PDF exists for that submission. Double-click the cell to download it. If the cell is blank, no document was generated for that submission.
First, Publish your form. Mapping changes only apply after you publish.If fields are still missing and your PDF is fillable, flatten it with a PDF flattening tool. Then, in the Integrate tab, find the document under Your documents, click the three dots , and select Update PDF to upload the flattened file. Your field mappings stay the same.
The X for a checkbox starts at the top-left corner of its field and is drawn at the field’s font size. It isn’t centered in the field, so making the field bigger or smaller doesn’t move the X or change its size.To line up your checkboxes:
  1. Click a checkbox field and set Font size to about the height of the box on your PDF.
  2. Drag the field so its top-left corner sits on the top-left corner of the box. Zooming in helps.
  3. Use the same Font size for all your checkboxes.
  4. Publish your form, then send a test submission and open the generated PDF to check the result.
Text works the same way: it starts at the top of its field. Place the top edge of the field just above where the text should appear.
